Watertube Boiler

Caldeira Flamotubular

Characteristics

  • Single drum boiler, outside the gas circuit, without expanded tubes.
  • Burning of the fuel in a specifically designed chamber, with a pre-chamber lined with refractory brick, thus ensuring complete combustion.
  • Acceptance of fuels with a high degree of humidity, stability in combustion and load on the boiler.
  • Horizontal and drainable superheaters outside the furnace radiation region, enabling the installation of systems for burning complementary liquid and gaseous fuels.
  • Thermal exchange area sized with the aim of providing a safety margin to meet production peaks and compensate for the thermal resistance caused by soot films that may eventually adhere to the tubes, guaranteeing the expected steam production throughout the entire period of operation.
  • Water/steam circulation is ensured by the conservative use of downcomers and risers.

Applications

  • Saturated or superheated steam for industrial processes in general.
  • Superheated steam for generating electricity and cogeneration.

Main Fuels

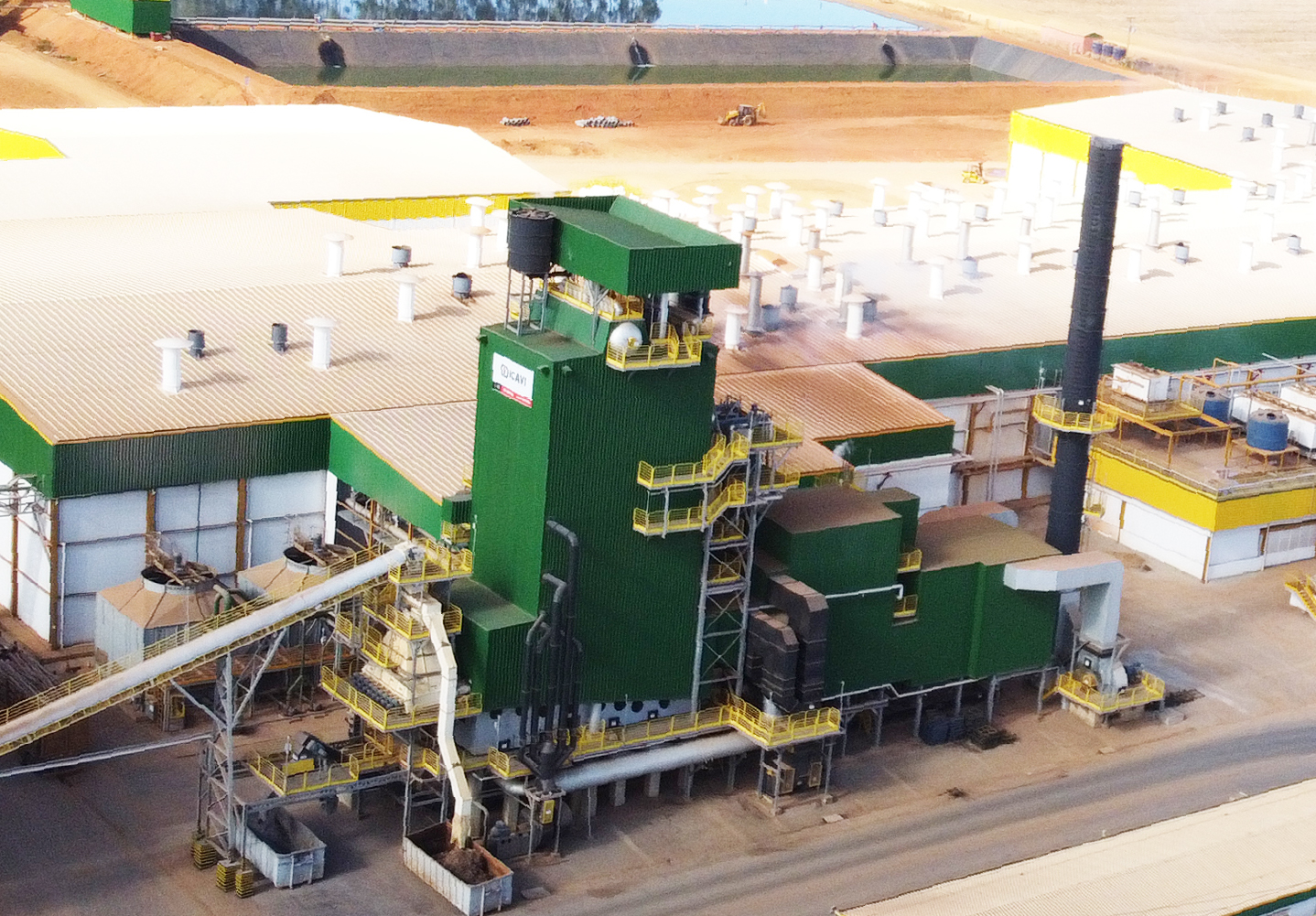

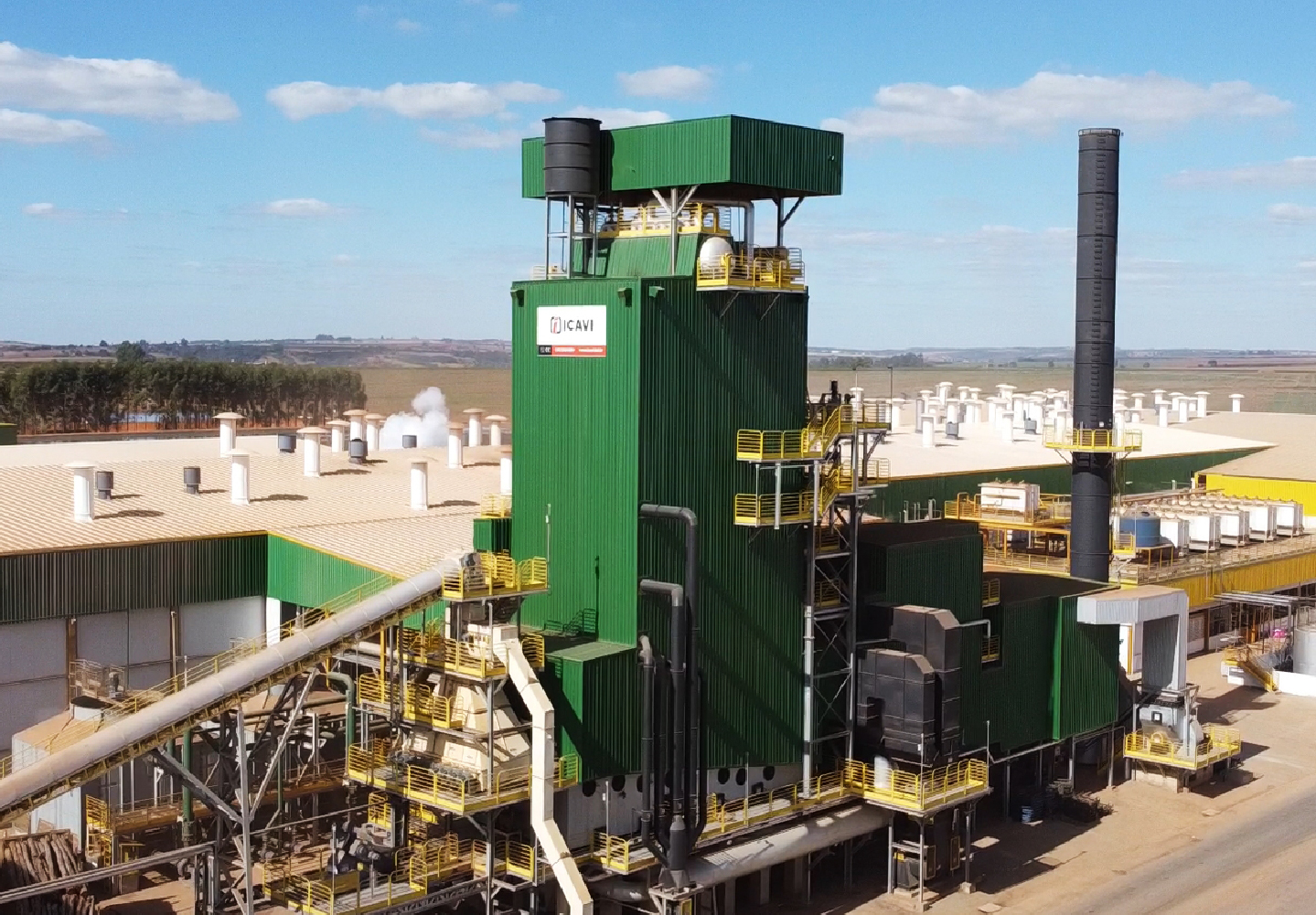

Photo of the applied project:

ICAVI Water Tube Boilers (ICA) have great operational flexibility, allowing the burning of solid, liquid and gaseous fuels individually or even a mixture of them. The project is customized and is characterized by the use of fuels with a wide range of calorific value and with varied physical-chemical characteristics. Applications include steam generation for industrial processes, electrical energy generation and cogeneration.
